Why Power Systems Need Voltage Control?

• November 17, 2025
• Gaurav Joshi

Have you ever wondered why the voltage at your home stays almost constant even when the demand for electricity keeps changing every second? The answer lies in one of the most fascinating aspects of power system engineering, voltage control. But here’s the interesting part: voltage control is not only about voltage. It’s also about reactive power.

Before we get to that, let’s first understand why power systems need voltage control and how it keeps the grid stable and efficient.

Table of Contents

1. The Need for Voltage Control in Power Systems
2. Understanding Voltage Variation Through Simulation
3. Why Power Systems Need Voltage Control
4. Voltage Control and Reactive Power
5. Devices Used for Voltage Control
6. The Foundation of Voltage Control
7. Conclusion

The Need for Voltage Control in Power Systems

Electric power is generated at large power stations that are often located far from cities and towns. From there, the energy travels through transmission lines, transformers, and distribution feeders before reaching homes and industries.

Ideally, the voltage at the consumer’s terminal should remain constant. But in reality, it doesn’t. The main reason for this variation is the change in load on the system.

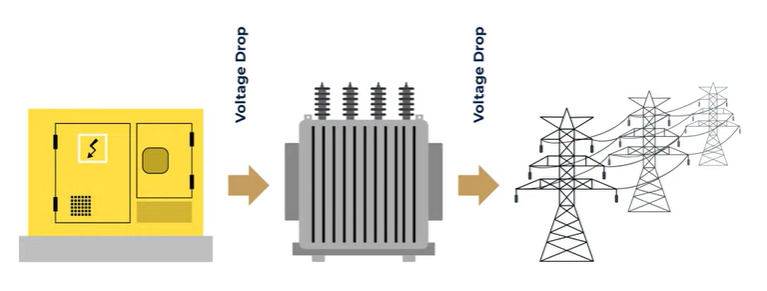

When the load increases, the current in the network also increases. Every component in the system generator, transformer, and transmission line has some impedance. Because of this, higher current causes a voltage drop across them. As a result, the voltage at the consumer’s end falls.

When the load decreases, the opposite happens. The voltage at the consumer end rises.

So, voltage variation is an unavoidable outcome of load variation. And since the load on the grid is always changing, we need a proper way to control voltage.

Understanding Voltage Variation Through Simulation

To understand the concept better, imagine a simple simulation.

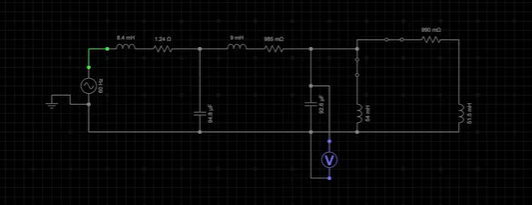

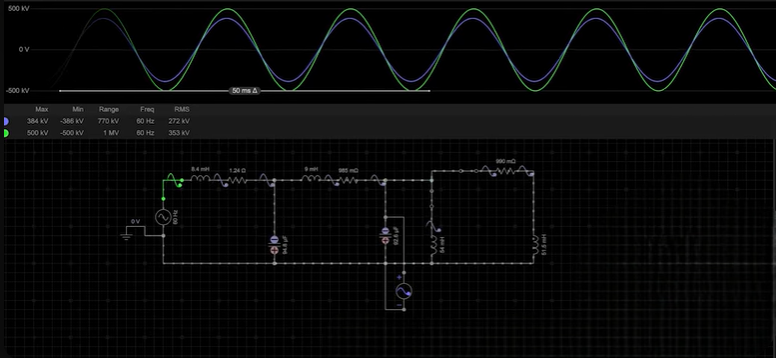

There is a power system with a generator, a long transmission line, and a load. When the load on the system is high, the voltage at the receiving end (the consumer’s side) becomes much lower than the voltage at the sending end (the generator’s side).

Now, when the load is disconnected, the receiving end voltage suddenly becomes very high compared to the sending end voltage.

This simple example shows how serious voltage variation can be. It can either drop too low or shoot too high depending on the load conditions.

Why Power Systems Need Voltage Control

You might wonder, why not allow the voltage to vary a little? The reason is that too much variation can create serious problems for both the equipment and the system. Let’s understand them one by one.

1. Equipment Protection

All electrical equipment motors, transformers, and generators, are designed to work within a specific voltage range.

If the voltage goes above that range, it can cause insulation damage. On the other hand, if the voltage drops too low, motors overheat because they draw more current to maintain power.

Thus, maintaining voltage within safe limits ensures the protection and longevity of all electrical equipment.

2. System Stability

Voltage fluctuations can make the entire system unstable. In severe cases, it can even lead to voltage collapse, causing blackouts.

By keeping the voltage within permissible limits, the power grid can handle changing loads smoothly without losing balance. Stability is one of the core reasons why power systems need voltage control.

3. Efficiency of Transmission and Distribution

A well-regulated voltage improves the efficiency of power transmission and distribution.

When voltage is too low, current increases, leading to higher losses in the lines. Conversely, controlled voltage reduces these losses, allowing the network to work more efficiently.

Efficient voltage control therefore not only maintains quality but also helps in energy conservation.

4. Load Performance

Different electrical loads perform best at their rated voltage.

For example, lamps, heaters, and motors function efficiently only when voltage stays within a certain range. If it fluctuates too much, their performance and lifespan suffer.

Hence, voltage regulation directly improves load performance and reliability.

In summary, maintaining voltage within ±5% or ±6% of the normal value ensures the safe, stable, and efficient operation of the power system.

Voltage Control and Reactive Power

Here’s where things become truly interesting. Voltage control is essentially reactive power control.

Reactive power, measured in VAR (Volt-Ampere Reactive), plays a crucial role in maintaining voltage levels in an AC system.

Let’s see how.

Reactive Power and Voltage Relationship

When you have inductive loads like motors or transformers, they consume reactive power. This causes the voltage to drop.

In the simulation we discussed earlier, high inductive load led to a voltage drop at the receiving end.

On the other hand, capacitive elements in the network supply reactive power. This makes the voltage rise.

When the load was disconnected in the simulation, capacitive elements became dominant, and the voltage rose sharply, a phenomenon called the Ferranti Effect.

So, when we talk about controlling voltage, we are really talking about managing the flow of reactive power in the system.

If the system voltage drops, we must supply reactive power. If the system voltage rises, we must absorb reactive power.

Devices Used for Voltage Control

Now that we know the relationship between voltage and reactive power, let’s look at how voltage is controlled in real power systems.

There are several devices and methods, each suited to different voltage levels and network locations.

1. Excitation Control and Voltage Regulators

At the generator station, voltage is controlled using excitation control systems and voltage regulators.

By adjusting the field excitation of the generator, operators can control how much reactive power it supplies or absorbs, keeping voltage stable.

2. Tap Changing Transformers

Tap changing transformers are used at both sending and receiving ends. They adjust the turn ratio of the transformer to either increase or decrease the output voltage.

This helps maintain the desired voltage level, especially in transmission and distribution networks.

3. Booster Transformers

In distribution networks, booster transformers are installed to regulate voltage locally.

They can slightly boost or reduce voltage depending on the conditions in a specific area.

4. Induction Regulators

Induction regulators are used for continuous voltage control. They work similarly to transformers but allow smooth adjustment of voltage without interrupting the circuit.

5. Series Capacitors

In long extra high voltage (EHV) transmission lines, series capacitors are used. They help compensate for the line reactance and improve voltage at the receiving end during heavy load conditions.

6. Shunt Reactors

During light load conditions, system voltage tends to rise. To counter this, shunt reactors are used.

They absorb excess reactive power, keeping the voltage within limits.

This method is especially common in long transmission lines.

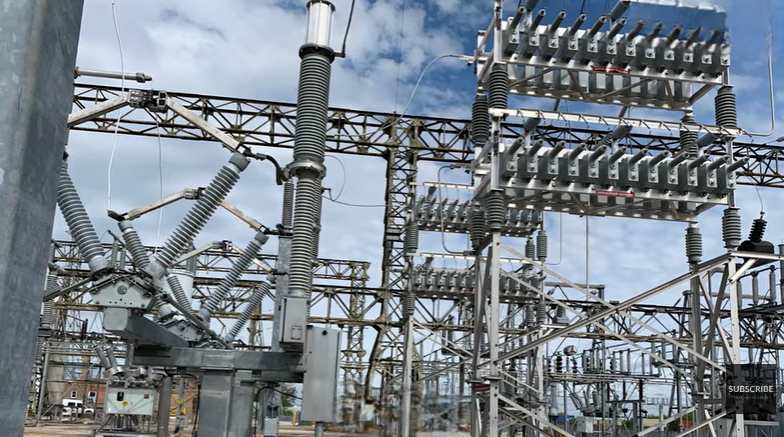

7. Shunt Capacitors

During heavy load conditions, voltage at the receiving end drops. In such cases, shunt capacitors are connected to the system.

They supply reactive power to raise the voltage level and improve the power factor.

8. Static Shunt Compensators (SVC) and STATCOMs

Static VAR Compensators (SVC) and STATCOMs are modern electronic devices used for dynamic voltage control.

They can quickly supply or absorb reactive power, making them ideal for fast-changing load conditions.

These are a key part of modern smart grids where response speed and flexibility are critical.

9. Synchronous Condensers

Synchronous condensers are rotating machines connected to the grid. They can both supply and absorb reactive power dynamically, depending on the system’s needs.

They improve voltage stability and are often used in transmission systems where rapid voltage regulation is essential.

Summary of Methods

Each voltage control method serves a specific purpose and location within the grid.

For example:

• Excitation control manages generator voltage.

• Tap changers and booster transformers regulate distribution-level voltage.

• Capacitors and reactors handle reactive power balance under different load conditions.

• SVCs, STATCOMs, and synchronous condensers provide dynamic support.


By combining these methods, power systems ensure stable and efficient operation under varying load conditions.

The Foundation of Voltage Control

To sum up the concept:

• Voltage variation mainly occurs because of load changes.

• Maintaining voltage within limits ensures stability, safety, and efficiency.

• Most importantly, voltage control is reactive power control.


Understanding this link between voltage and reactive power forms the foundation of power system voltage control.

Conclusion

Voltage control is essential for every modern power grid. It keeps equipment safe, ensures stability, and improves efficiency. More importantly, it manages reactive power flow, which is the true driver behind voltage regulation.

In the next step of learning, you can explore excitation control systems and see how generators maintain voltage using field excitation.

For a clearer and visual understanding, watch the video “Why Power Systems Need Voltage Control? (The Basics Explained)” to see how voltage and reactive power work together in real systems.
